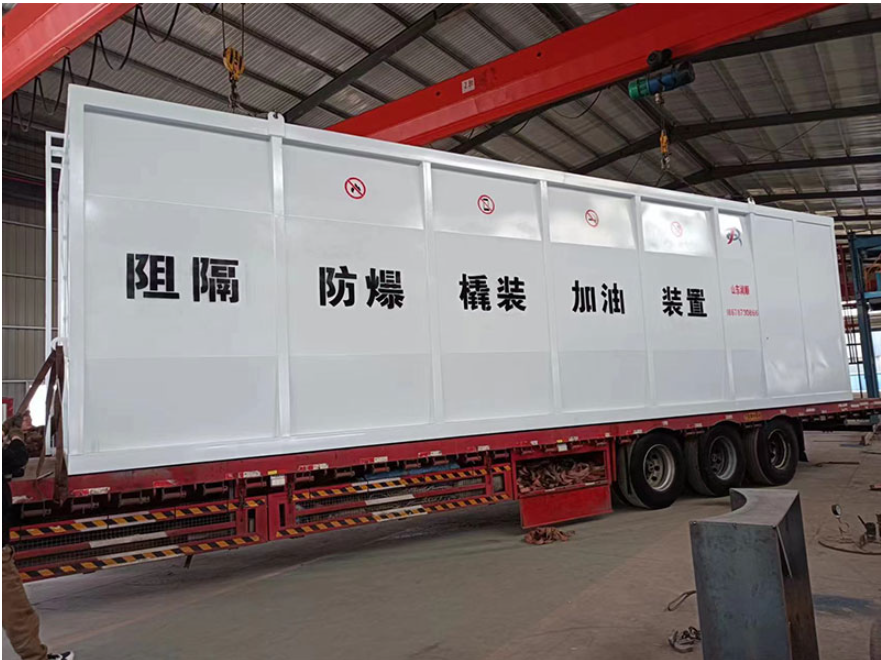

Explosion-proof barrier skid-mounted refueling device
This explosion-proof modular fueling device is a modular fueling equipment that integrates oil storage, fueling, explosion prevention and safety monitoring. Its features and advantages are as follows:
Core explosion-proof technology and safety design
• Barrier explosion prevention principle: The interior of the storage tank is filled with metal mesh or foam-like explosion-proof materials. When exposed to open flames, static electricity, or impacts, these materials can block the path of flame spread, inhibit the diffusion of explosion pressure, and fundamentally prevent the explosion of the storage tank.
• Multiple safety protections: Equipped with overpressure relief valves, temperature sensors, liquid level alarms, emergency shut-off valves and other devices, it can monitor parameters such as pressure, temperature and liquid level in real time. In case of any abnormalities, it will automatically activate the protection mechanism (such as pressure relief, power cut-off) to prevent safety accidents.
• Fireproof and earthquake-resistant structure: The tank body is made of explosion-proof steel plates, and the exterior can be coated with fireproof coating. It has shock resistance and fire prevention capabilities, and is suitable for complex environments such as earthquakes and high temperatures.
Integration and easy deployment

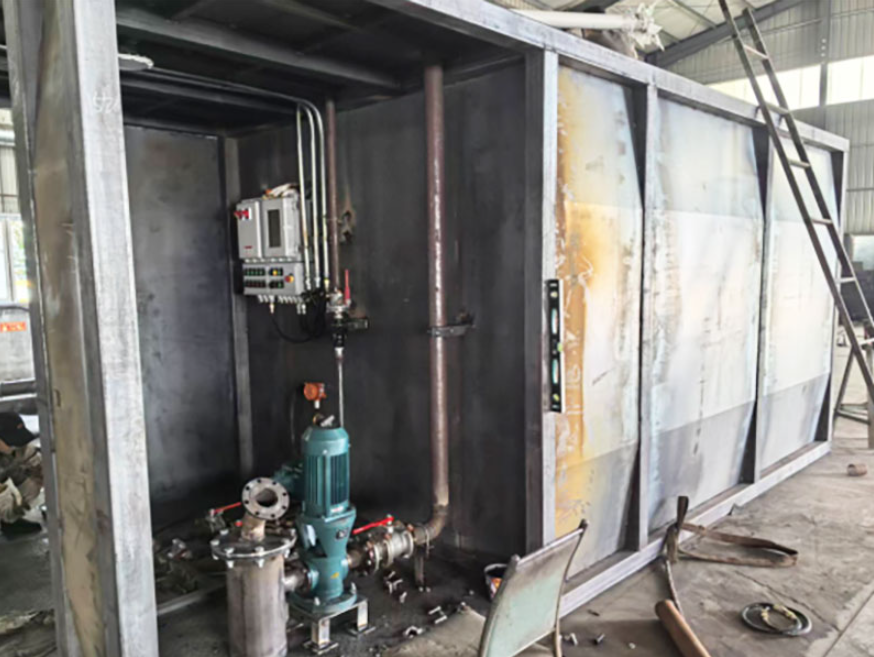

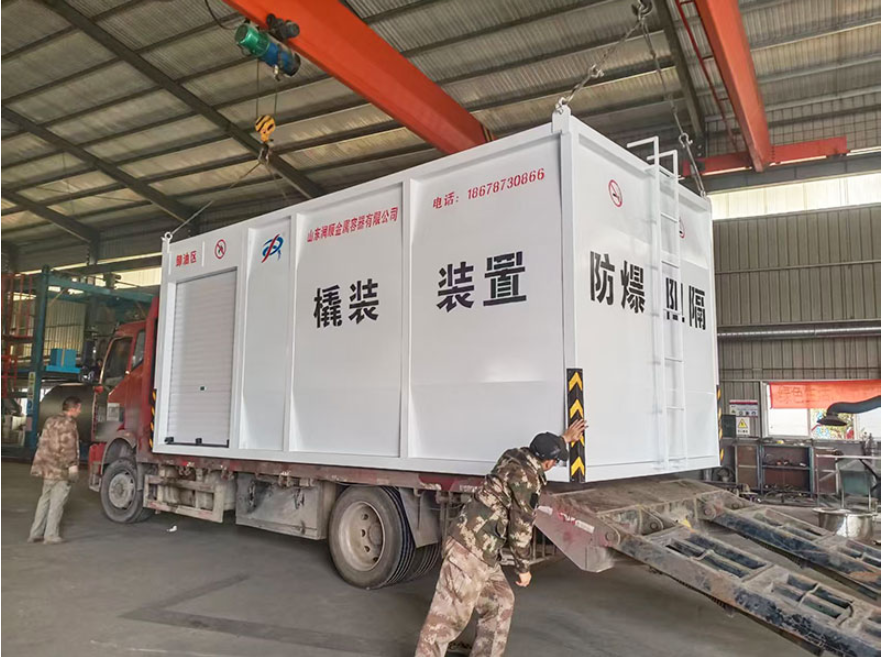

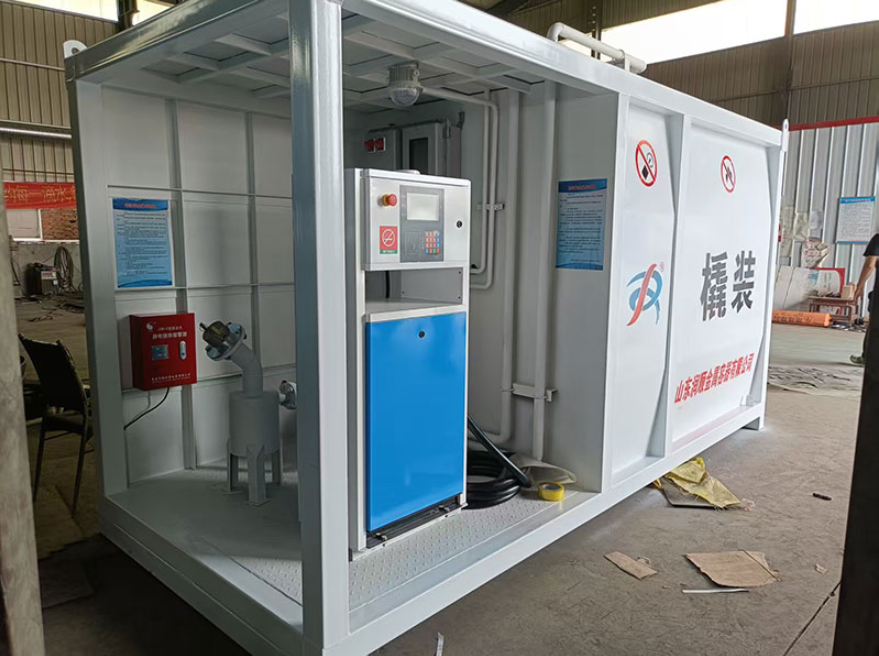

• Sledding modular design: The oil storage tank, fueling machine, oil vapor recovery system, and fire-fighting facilities (such as fire extinguishers and automatic sprinkler systems) are integrated into a unified sled-shaped base. It can be transported as a container, requiring no large-scale on-site construction. The installation period is short (usually 1-3 days).
• Flexible adaptation to scenarios: It can be used in enterprises, logistics parks, mines, ports and other places that require temporary or fixed refueling. It is not restricted by the site and can be moved as a whole during relocation, with high reuse rate.
Environmental protection and economy
• Oil vapor recovery system: Equipped with an oil vapor recovery device, it can reduce the pollution caused by volatile oil vapors during refueling, meeting environmental protection requirements.
• Cost savings: No need to build fixed gas stations, thus saving on high costs such as land approval and construction works; modular maintenance is convenient, with low maintenance costs. The fueling volume can be adjusted according to needs, avoiding waste of resources.
Intelligent and convenient management
• Intelligent Monitoring System: It supports remote monitoring of the status of oil tanks and fueling data (such as oil quantity and fuel volume), and can be connected to the enterprise management system to achieve digitization and automation of the fueling process, facilitating statistics and management.
• Simple operation: The device interface is intuitive, and operators can get started with it after a brief training. Daily maintenance only requires regular checks on the sensors and the operating status of the equipment.
Scope of Application
It is widely used in industrial enterprises, logistics fleets, bus stations, construction sites and other scenarios where centralized oil supply is required. It is particularly suitable for places with high requirements for safety and environmental protection and where rapid deployment is necessary.
